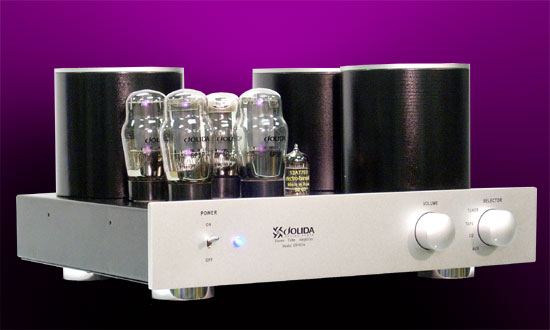

New tube amplifier from Jolida - the JD 707A
Jolida vacuum tube amplifier
Model JD707A
| Maximum Power Output: | 60 W per channel at 8 ohms, 1KHz, at peak 50% duty cycle |
| Rated Output Power: | 40 W per channel at 8 ohms, 29Hz to 70KHz |
| Frequency Response: | (at 1 watt into 8 ohms) 20Hz to 72KHz + 1dB; 0dB at 1KHz |
| Bandwidth: | 14Hz to 130KHz + 3dB; 0dB = 40 W 1KHz, 8 ohms |
| Distortion THD: | Less than 1% at 40W output, 29Hz to 20KHz, 8 ohms |
| Circuit Type: | Ultra Linear, Class AB1 |
| Input Impedance: | Less than 100Kohms |
| Input Sensitivity: | Max. 550mV at 1KHz for 40 watt output |
| Output Impedance: | 4 ohms and 8 ohms |
| Negative Feedback: | Less than 2 dB |
| Noise and Hum: | 92dB below rated output. |
| Tube Complement: | 2 matched pairs (4) of 6P3P/5881 power output; 2 pcs. 12AX7A pre- amplifier, 2 pcs. 12AT7A power drivers. |
| Power Requirements: | 110V-120 VAC 60Hz 250 watts-standby, 500 watts maximum (220 VAC -240 VAC 50Hz option). |
| Dimensions: | 18.25 inches (46.5 cm) wide by 13.5 inches (34.5 cm) deep by 8.5 inches (22 cm) high. |
| Fuse: | 110V-120 VAC 6.3 fast blo, 220V-240 VAC 3.15 fast blo, 5mm x 20mm |
| Weight: | 52 pounds (21.5 Kg) net, approximately 55 pounds (25 Kg) packaged. |
| Warranty: | Two years limited parts and labor. One year or 1,000 hours whichever comes first on Jolida Tubes. |
