Jolida monoblock vacuum tube amplifiers
|

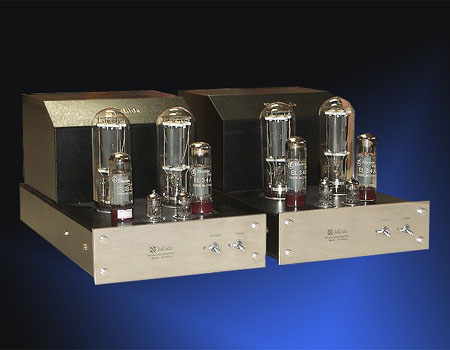

Jolida JD3000
|
Technical
Specifications:
3000A
200 Watt Vacuum Tube monoblock Power
Amplifier
| Rated
Output Power: |
200
W per channel at 8 ohms, 25Hz to 40KHz |
| Frequency
Response: |
(at
1 watt into 8 ohms) 14Hz to 50KHz +
1dB |
| Distortion
THD: |
Less
than 1% at 150 W output, 21Hz to 28KHz |
| Circuit
Type: |
Ultra
Linear, Class AB |
| Input
Impedance: |
100Kohms |
| Input
Sensitivity: |
2.35mV
at 1KHz and 8 ohms for 200 watt output |
| Output
Impedance: |
4
and 8 ohms |
| Tube
Complement: |
2
pcs. 211 power output; 2 pcs. El34 power
drivers, 2 pcs. 12AT7 power drivers |
| Dimensions: |
11
in. W X 19 in. D X 9 3/4 in. H |
| Power
Requirements: |
110V-120
VAC 60Hz 180 watts-standby, 850 watts
maximum (220 VAC 50Hz option) |
| Weight:
|
50
pounds (23 Kg) net, approximately 55
pounds (25 Kg) packaged |
| Warranty:
|
Two
year limited parts and labor. One year or
1000 hours whichever comes first on
Jolida Tubes. |
3000B
Vacuum Tube Preamplifier
| Max
Output Voltage: |
20
V |
| Voltage
Gain: |
20
dB |
| Frequency
Response: |
5Hz
to 110KHz, 10 V |
| Distortion
THD: |
Less
than 1%; 1 KHz, 10 V |
| Input
Impedance: |
100Kohms |
| Output
Impedance: |
600
ohms |
| Tube
Complement: |
2
pcs. 12AX7; 2 pcs. 12AT7 |
| Dimensions: |
17
1/2 in. W X 12 in. D X 4 1/4 in. H |
|
|
