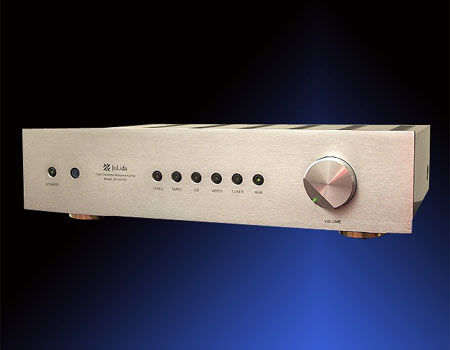

Jolida integrated hybrid tube amplifier with remote control


Jolida JD1501RC

Technical Specifications:

Rated Output Power:
100 W per channel at 8 ohms, 22Hz to 19KHz

Frequency Response:
(at 1 watt into 8 ohms) 5Hz to 100KHz + 1dB

Bandwidth:
22Hz to 19kHz + 3dB; 0dB 100 W 1KHz

Distortion THD:
Less than 0.1% at 90 W output, 22Hz to 18KHz

Input Impedance:
47Kohms

Input Sensitivity:
500mV at 1KHz and 8 ohms for 100 watt output

Noise and Hum:
90dB below rated output

Tube Complement:
2 pcs. 12AX7 for the preamplifier.

Power Requirements:
110V-120 VAC 60Hz 180 watts-standby, 450 watts maximum (220 VAC 50Hz option).

Dimensions:
17 inches wide by 13 inches deep by 4.5 inches high
Weight:
32 pounds net, approximately 35 pounds packaged.

Warranty:
18 months limited parts and labor. Six months or 1000 hours whichever comes first on Jolida Tubes.
