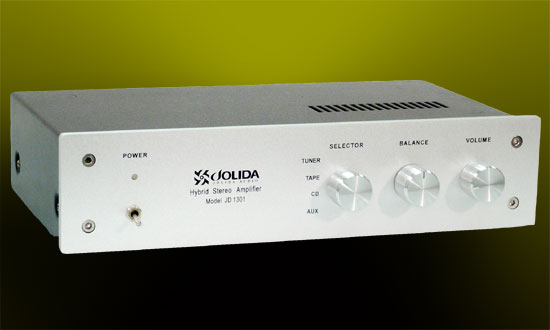

Jolida vacuum tube & solid state hybrid amplifier



Jolida

JD1301A

Technical Specifications:
Rated Output Power:
30 W per channel at 8 ohms, 22Hz to 20KHz


Frequency Response:
(at 1 watt into 8 ohms) 5Hz to 100KHz + 1dB


Bandwidth:
22Hz to 20kHz + 3dB; 0dB 30 W 1KHz


Distortion THD:
Less than 0.1% at 30 W output, 25Hz to 18KHz


Input Impedance:
47Kohms


Input Sensitivity:
500mV at 1KHz and 8 ohms for 30 watt output


Noise and Hum:
90dB below rated output


Tube Complement:
2 pcs. 12AX7 for the preamplifier


Power Requirements:
110V-120 VAC 60Hz 180 watts-standby, 450 watts maximum (220 VAC 50Hz option).


Dimensions:
7 inches wide by 6 inches deep by 4 inches high.


Weight:
8 pounds (3.65 Kg) net, approximately 11 pounds (5 Kg) packaged.


Warranty:
One year limited parts and labor. Six months or 1000 hours whichever comes first on Jolida Tubes.


Fuse:
110 - 120 VAC, 1 Amp Fast Blo; 200 - 240 VAC, 1 Amp Fast Blo
